Garmin STRIKER Vivid 4cv vs Lowrance HOOK Reveal 5

Buy the Garmin STRIKER Vivid 4cv when you want a 4-inch color finder with a GT20 transducer, CHIRP, ClearVü, and a GPS you can mark. Buy the Lowrance HOOK Reveal 5 SplitShot when you want the 5-inch keypad unit with a SplitShot transducer, FishReveal, and preloaded C-MAP US Inland charts. Both are boat fishfinders with a transducer in the box. A 7-inch or 9-inch Reveal is a different screen. A STRIKER without the "Vivid 4cv" and the GT20 is a different Garmin. Read the model: 010-02550-00 on the Garmin card, 000-15500-001 on the Lowrance card.

Short version. A handheld VHF is how you talk. A bilge pump is how the hull stays empty. The finder is how you see depth and targets under the boat. A paddle still moves a kayak when the finder is only a screen. Check live prices. Confirm the transducer is in the same box as the head unit before you mount anything.

This comparison is two small finders for a skiff, a jon boat, or a tiller boat that does not already have a glass helm. It is not a networked chartplotter, not a live forward sonar, and not a phone app. The Garmin card is the 4-inch STRIKER Vivid 4cv with the GT20. The Lowrance card is the HOOK Reveal 5 with SplitShot and the inland charts. If the listing is a head unit only, or a triple-shot transducer you did not mean to plumb, close it. The wrong transducer is a finder that paints noise and a weekend spent on the transom.

Garmin's card is 010-02550-00, the Vivid 4cv with GT20. Lowrance's card is 000-15500-001, the Reveal 5 SplitShot. A no-transducer listing is a different buy.

Who should buy the STRIKER, and who should buy the Reveal?

Buy the STRIKER Vivid 4cv if the boat is small and you want a finder you can learn in a morning. Four inches is enough to see depth, a bottom line, and a ClearVü slice when you are sitting on top of the screen, the way you do in a kayak or on a tiller seat. The GT20 is the transducer in this kit: traditional CHIRP and ClearVü scanning. GPS lets you mark a brush pile and see speed, which is the feature people miss when they buy a bare flasher and then cannot find the spot again. The box includes a tilt and swivel mount plus hardware for a transom or a trolling motor. That hardware is the mount you should plan around, not a custom kayak scupper you have not measured.

Buy the HOOK Reveal 5 SplitShot if you want a larger 5-inch picture, a keypad you can use with wet hands, and charts that are already loaded. Preloaded C-MAP US Inland is the reason this card is a chartplotter and a finder, not only a sonar. FishReveal is Lowrance's combined view of CHIRP targets and DownScan structure. Autotuning is the brand's way of saying the unit will chase the settings so you spend less time in menus. Genesis Live can draw a contour map while you drive, onto a blank microSD card you supply. The SplitShot transducer is the two-in-one skimmer in this kit. A different Reveal with a different transducer, or a 7-inch head, is a different install.

Do not buy either unit as a substitute for knowing the lake. A screen full of color is not a spot until you have caught a fish on it or confirmed the depth with the boat stopped. The radio still belongs on board when the water is big enough to need one. A finder does not call for help. It draws the bottom.

What the STRIKER Vivid 4cv is actually for

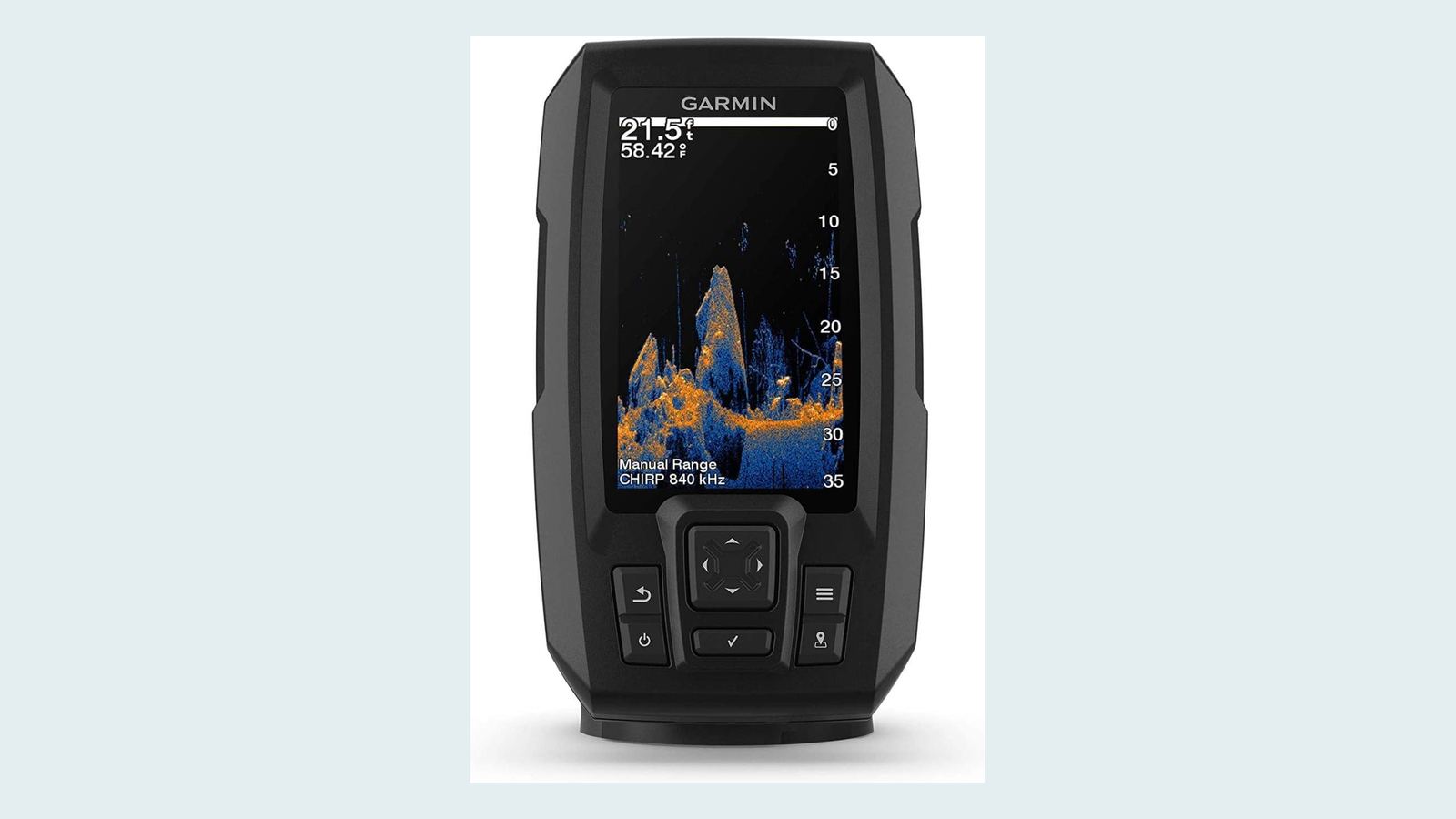

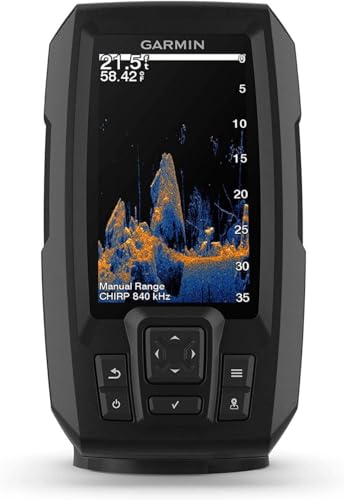

Garmin's STRIKER Vivid 4cv on this card is model 010-02550-00: a 4-inch color fishfinder with vivid palettes, a GT20 transducer, CHIRP sonar, CHIRP ClearVü, and a GPS for waypoints, routes, and speed. Quickdraw Contours is how you build a map of a lake that does not have a useful chart, one foot of contour at a time, by driving the boat. That map lives on the unit. It is not a paper chart, and it is not a substitute for watching the shoreline while you draw it.

Four inches is a choice. On a kayak deck or a small console it fits. At the far end of a wider boat, squinted at in noon sun, it is a screen you will lean toward. The vivid palettes are there to separate targets from the bottom. They do not add range the transducer does not have. Mount the GT20 where clean water flows across the face: low enough to stay wet at planing speed if that is how you run, high enough to miss the trailer bunks, and clear of the prop wash and any jack plate that throws air. A transducer in bubbles paints a blank, and the blank is not a deep hole.

Do: power it from the boat's 12-volt system through the included cable, with a fuse in that line, and a switch you can reach. Don't: share a corroded tap with a pump and wonder why the screen reboots when the pump starts. Don't: run the sonar for long with the transducer out of the water. The face wants water under it. Don't: paint the transducer face to match the hull. Paint is how you blind it.

What the HOOK Reveal 5 SplitShot is actually for

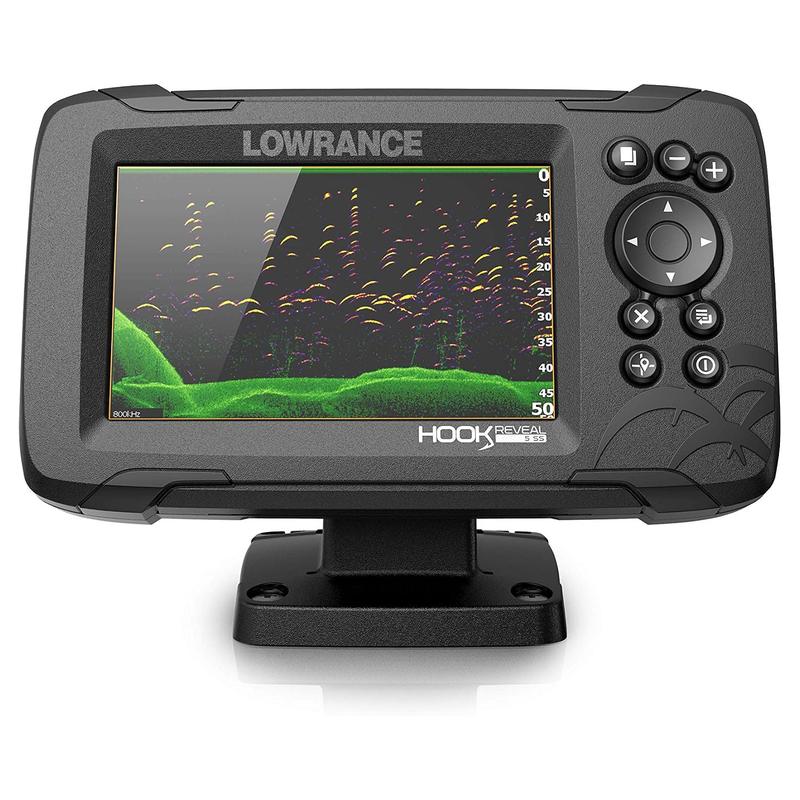

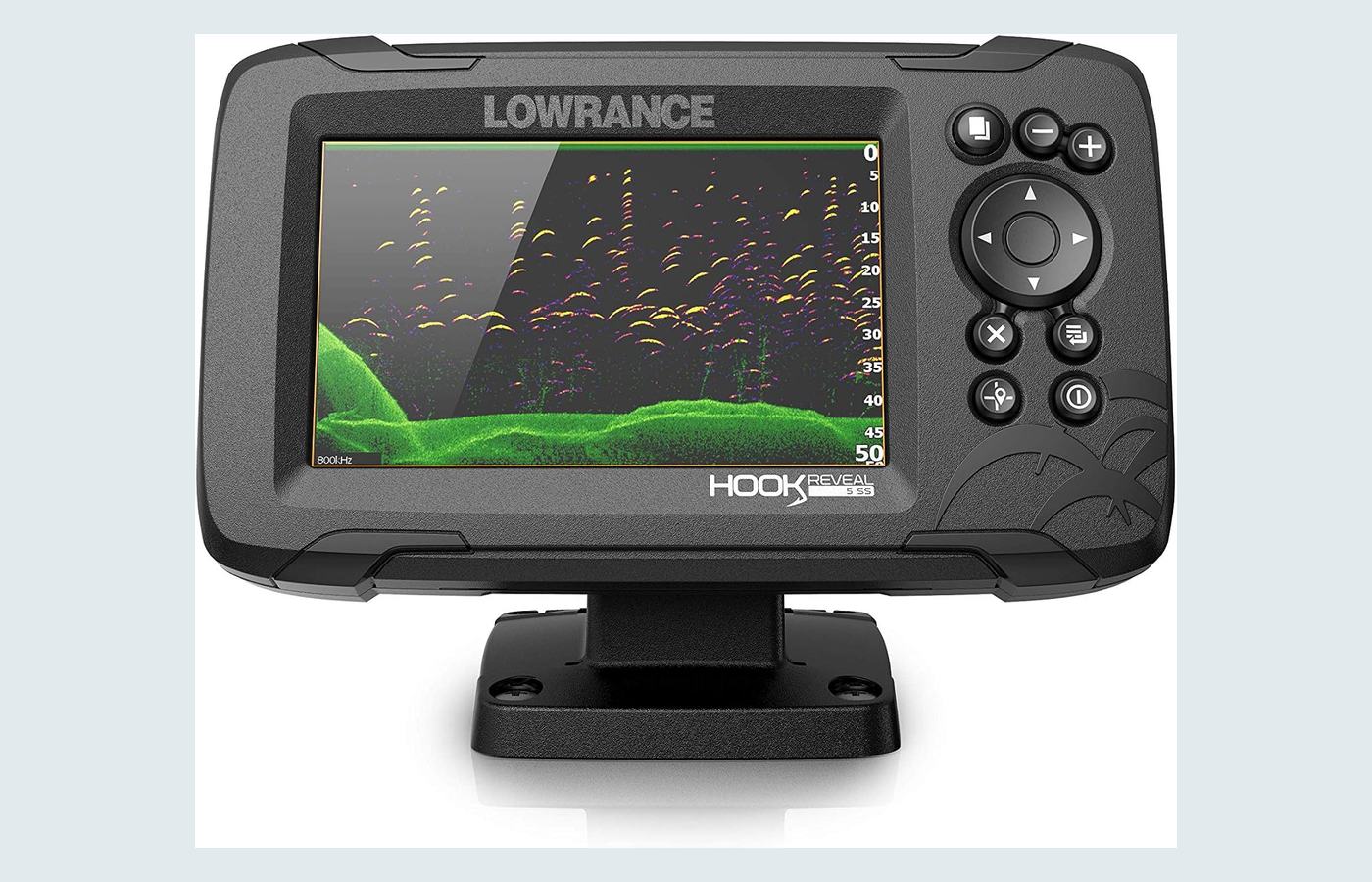

Lowrance's HOOK Reveal 5 SplitShot on this card is model 000-15500-001: a 5-inch SolarMAX-style display, a keypad, a SplitShot skimmer, and preloaded C-MAP US Inland mapping. The keypad is the interface. This is not a touch-only glass panel. Wet fingers and gloves are why that still matters on a small boat. FishReveal puts target marks on a DownScan picture so you are not flipping between two screens to decide if a mark is a fish or a stump. Autotuning chases sensitivity as depth and noise change. You can still make it worse by maxing every slider. Start with the auto settings on a known flat and learn what a real bottom looks like before you add color.

Genesis Live wants a blank microSD if you want to save the map you just drew. The card slot is not a mystery. A full card, or no card, means the live map does not have a home. Inland charts that shipped in the unit are the base map. They are not a promise that your farm pond is drawn. A pond you have never seen on a chart is exactly why you record your own pass, slowly, with the transducer in clean water.

Do: mount the SplitShot level, face down, where the flow is smooth. Don't: bury it behind a rivet line or a lifting strake that throws air at speed. Don't: assume a 5-inch Reveal mounts in a hole cut for a 9-inch unit. Measure the bracket and the dash before you drill. A gimbal bracket on a flat panel is the install these small kits expect. A flush-mount fantasy is how dashboards get ruined.

How to install either finder so the picture is real

Power first, transducer second, ego third. Run the power cable to a fused 12-volt source that is actually 12 volts when the motor is off and when it is charging. A weak battery makes a finder reboot and makes people blame the brand. Ground it to a clean point, not to a painted screw. Then route the transducer cable with a drip loop so water does not run downhill into the plug. Tight zip ties on a transducer cable, cranked until the jacket cuts, are a future failure. Snug is enough.

The face of the transducer wants to be just below the waterline on plane, parallel to the surface, and ahead of the prop's disturbed water if you can manage it. On a transom, that is usually to one side of the motor, clear of the trailer. On a trolling motor, use the hardware meant for that shaft and accept that the picture is best at trolling speed, not at 25 miles an hour. On a kayak, the included transom kit may not fit your hull. A portable arm or a through-hull scupper mount is a separate piece. Do not drill the kayak because the bracket "almost" reached.

Learn one palette on water you know. Idle over a ramp, a dock, and a flat you have fished. If the depth matches the number you already trust, the install is honest. If the depth jumps or the bottom breaks into confetti at speed, the transducer is aerated or loose. Fix the mount before you buy a second screen. The pump and the finder can share a boat and should not share a sloppy connection.

What actually fails on a small fishfinder

Air fails the picture. Bubbles, a transducer mounted too high, a jack plate, or a boat that is porpoising will blank the screen at the moment you wanted it. Slow down. If the picture returns, the mount is the problem. Sun fails your eyes more than it fails the panel. A cover, a different angle on the swivel, and a palette with contrast are the fixes. A bigger screen helps only if you had somewhere to put it.

Corrosion fails the plug. Dielectric grease on the pins, a connector that is actually locked, and a cable that is not lying in the bilge are the maintenance. A finder that works on the trailer and dies after a rain spent the night with water in the plug. Dry it. Do not bake it.

The other failure is the wrong model in a family with too many names. STRIKER 4, STRIKER Vivid 4, and STRIKER Vivid 4cv are not the same kit. The cv and the GT20 are this Garmin card. HOOK Reveal 5, 7, and 9, and SplitShot versus a triple-shot or a no-transducer head, are not the same install. Model 010-02550-00 and model 000-15500-001 are the numbers that matter. A photo of a larger screen with a 5-inch title is how people drill the wrong hole.

What this fight is not

It is not a VHF, and it is not a life jacket. Seeing the bottom does not make a bar crossing safer and does not replace a chart you can read when the screen dies. It is not a trolling motor. The mount hardware may bolt to one. The finder does not steer. It is not a depth sounder you can trust at 40 miles an hour if the transducer was aimed for idle. Match the speed you fish to the picture you actually get, and slow down when the picture falls apart.

It is not a reason to stare at color instead of the water ahead. Mark the waypoint. Watch the boat. On a kayak, the paddle and the finder take turns. They do not both get your eyes at the same second.

So which finder should you buy?

Buy the Garmin STRIKER Vivid 4cv, model 010-02550-00, with the GT20, when you want the 4-inch CHIRP and ClearVü kit and you will record your own contours. Buy the Lowrance HOOK Reveal 5 SplitShot, model 000-15500-001, when you want the 5-inch keypad, FishReveal, and the preloaded inland charts. Mount the transducer in clean water, fuse the 12-volt feed, and confirm the model number before you drill. A bigger Reveal, or a STRIKER without this transducer, is a different boat project.
