Scotty 241-BK vs RAILBLAZA StarPort HD

Buy the Scotty 241-BK when you want the black side or deck bracket the title says works with Scotty post-mount rod holders, with bolting dimensions of 1 5/16 by 3 3/16 inches and no hardware in the box. Buy the RAILBLAZA StarPort HD, model 03-4046-11, when you want the black rectangular base the card sizes at 6 by 4.25 by 1.25 inches and 2.08 ounces, for RAILBLAZA accessories. A Scotty post does not lock into a StarPort. The hole pattern may let you reuse screws. The accessory on top still has to match the base.

Short version. A fishfinder needs a different mount than a rod. A life jacket is what you wear while you drill. A kayak paddle is not a rod holder. A bilge pump will not hold a stick. Measure the gunnel before you order a second base.

The Scotty card is the 241-BK, black, titled as a side deck mounting bracket compatible with Scotty post-mount rod holders. The bullets say it works with all Scotty post-mount rod holders, the bolting dimensions are 1 5/16 by 3 3/16 inches, hardware is not included, and it can mount on a flat surface or on the side of a gunnel or transom. The model number field says 241-BK. The UPC is 062017002415. The item-part field says 0241-BK. The manufacturer-part field says 0241L-BK. That L is the conflict. A 241 and a 241L are not the same release. The title and the model field say 241-BK. If the bracket in the bag is stamped 241L, you received the locking version the part cell hinted at, not the title you ordered. Read the stamp. Item dimensions print 2 by 2 by 4 inches, and a different pair of cells prints length 9 inches and width 4.5 inches. Item weight prints 1.6 ounces. Measure the bracket. The bolting dimension in the bullet is the number that has to match the holes already in the boat.

The RAILBLAZA card is model 03-4046-11, black, titled StarPort HD, a rectangular mount base. The bullets call it a practical replacement for a preexisting external mount base, a four-point pattern consistent with industry standards, and compatible with the hardware already holding your base to the kayak. Other hardware options listed are rivets, screws and locknuts, self-tapping screws, which the bullet does not recommend for rod holders, or the StarPort HD track mounting kit. The details table prints 6 by 4.25 by 1.25 inches, 2.08 ounces, nylon, color black. The maker's own description of this base says the footprint lines up with many Scotty, RAM, and Cannon bases so you can change bases without new holes, and that RAILBLAZA accessories lock in with a push and a twist. Those accessories are not Scotty posts. If you need the Scotty holder you already own, keep a Scotty bracket.

Scotty model 241-BK. RAILBLAZA model 03-4046-11. A 241L push-button bracket is a different part if the stamp says L.

Who should buy the 241-BK, and who should buy the StarPort HD?

Buy the Scotty 241-BK if the rod holders you already own are Scotty posts. The title is specific. The bracket is the socket. Without it, the post has nothing to click into. Black is the color on this card. Grey and white exist in the same family and are different listings. The bolting dimension, 1 5/16 by 3 3/16 inches, is what you check against the holes in the gunnel. If your old bracket used that pattern, this one should drop onto the same screws, and the bullet still says the hardware is not in the box. Bring the screws, or buy stainless screws and nylock nuts that match the thickness of your gunnel. A self-tapper into thin plastic is how kayaks crack.

Buy the StarPort HD, model 03-4046-11, if you are moving onto RAILBLAZA accessories: their rod holders, their trays, their lights, the pieces that lock into a StarPort. The card's promise is a rectangular four-point base that can replace a base you already bolted down, using the hardware already there. That is a hole-pattern promise. It is not a promise that yesterday's Scotty post will twist into the new star. People learn that on the water, with a rod in one hand and a base that will not take it. If you want both ecosystems, you need both bases, or you pick one and sell the other holders. The 6 by 4.25 by 1.25 inch size is the base, not the rod holder you have not bought yet. Two ounces is the base. A holder and a rod are the load.

Do not buy either base because the word kayak appeared in a title and your boat is a jon with a thick aluminum gunnel. The pattern can still match. The length of the bolt may not. Measure the skin, the backing plate, and the reach of the screw. Do not drill a new pattern until the old holes have been offered the new base. The whole point of both cards is to avoid a fresh set of holes when the old set already fits.

What the Scotty 241-BK is actually for

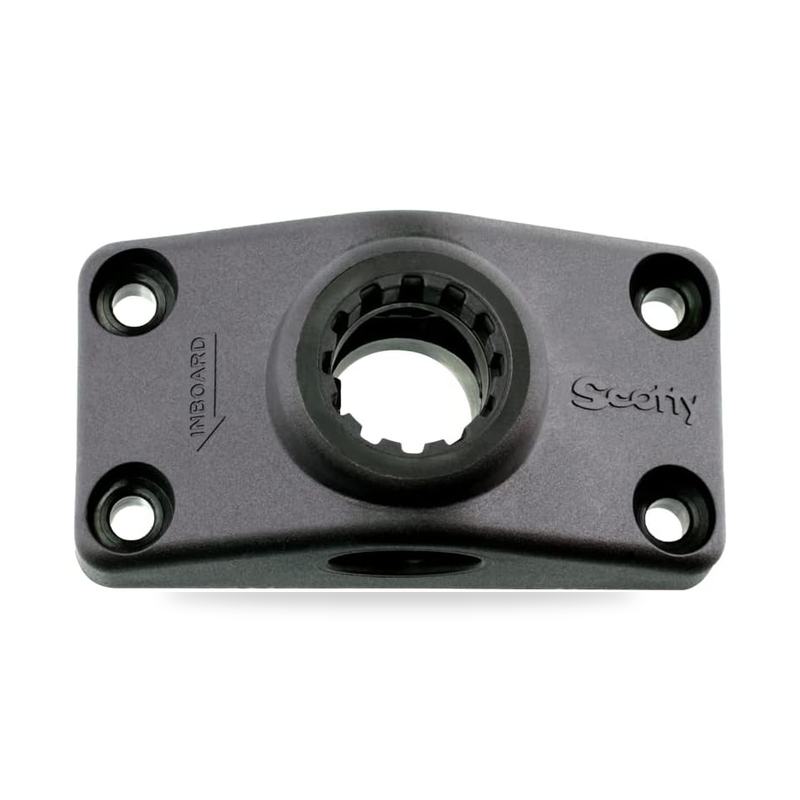

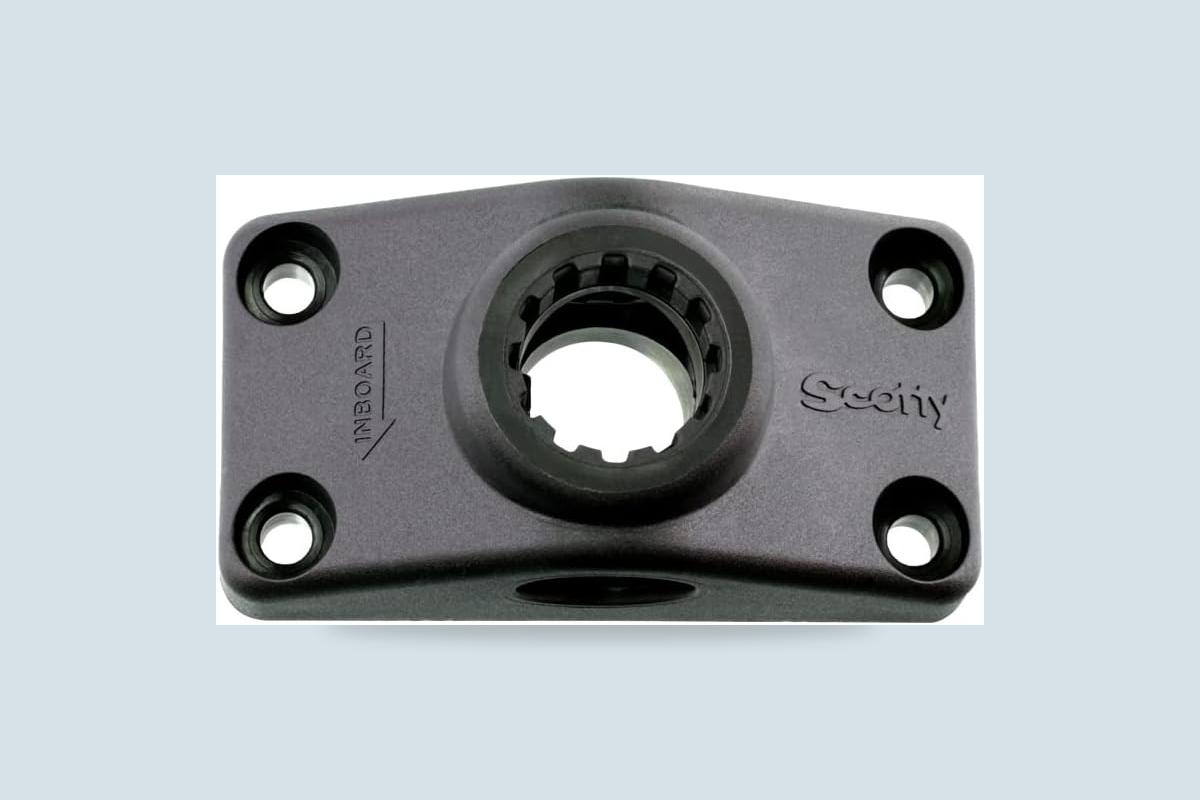

Scotty's 241 is the combination bracket that sits on a deck or on the side of a gunnel and takes a Scotty post. This card is the black one, model field 241-BK, UPC 062017002415, item weight 1.6 ounces. The useful sentence is the bolting dimension and the note that hardware is not included. The confusing sentence is the manufacturer part 0241L-BK beside a model field that says 241-BK. The L, on Scotty brackets, is the push-button lock. The plain 241 turns to release. If you wanted the button, confirm the stamp before you mount four of them and then discover the release is the older twist. If you wanted the plain 241 because your other brackets are plain, and the bag says L, send it back or keep it on purpose. Do not mix releases on one boat unless you enjoy guessing in the dark.

The dimension cells disagree: 2 by 2 by 4 inches in one place, 9 inches long and 4.5 inches wide in another. A bracket that bolts on a 1 5/16 by 3 3/16 pattern is a small part. Nine inches is likely a package or a bad cell. Hold a tape against the part before you plan a hatch that has an inch of clearance. Side mounting on a transom puts the rod over the water or over the motor. Deck mounting puts it inboard. The same bracket does both, which is the combination claim. The screws still have to land in something solid, with a backing plate on a kayak so the nut does not pull through the plastic.

Do: dry-fit the bracket on the existing holes, then mark, then seal the holes you must add with a marine sealant the hull maker allows. Don't: bed a bracket in silicone that never cures under the flange, and don't crank a screw until the nylon oval. The bullet calls it a bracket for rod holders. It is not a cleat. Do not use it as a tow point. Wear the vest while the drill is out. A kayak and a corded drill are a wet mistake if you are standing in the boat.

What the StarPort HD is actually for

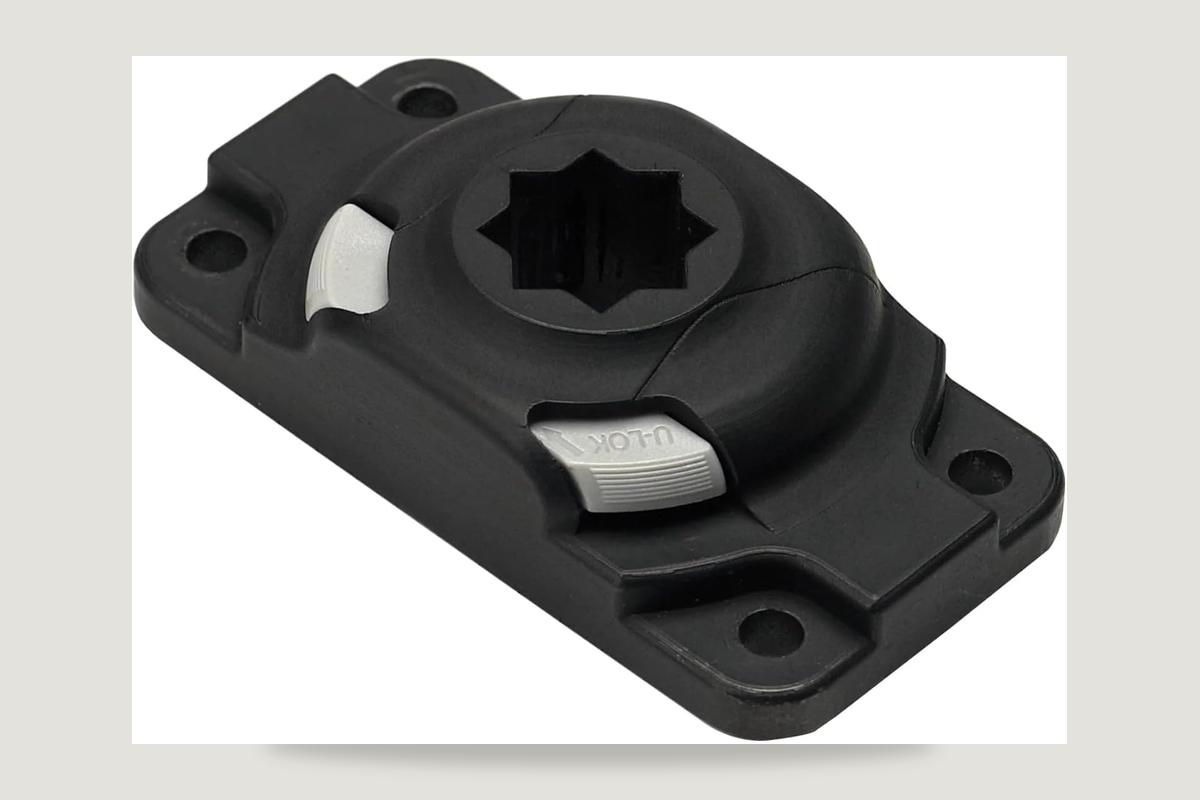

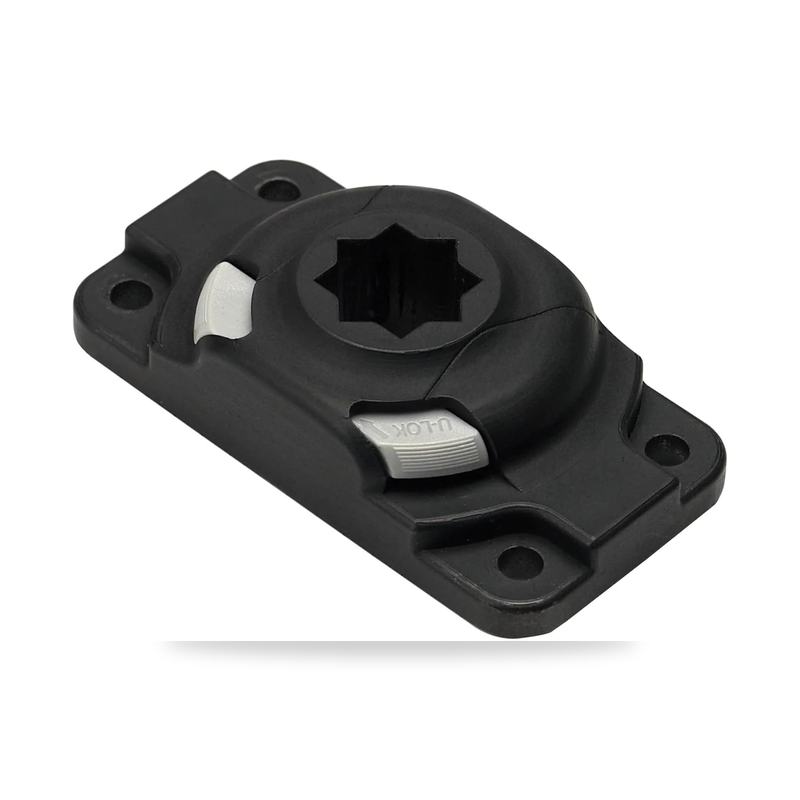

Model 03-4046-11 is a black nylon rectangle, 6 by 4.25 by 1.25 inches, 2.08 ounces, with a StarPort on top. The bullets say four-point, industry-standard footprint, replace an existing base, use the hardware you already have. Self-tapping screws are listed and then discouraged for rod holders. That warning is doing real work. A rod holder sees a side load every time a fish runs and the rod is in the tube. Screws into a thin skin, with no nut on the back, pull out. Rivets, screws with locknuts, or the track kit the bullet names are the paths that keep the base attached to the boat instead of attached to the rod that just left.

The StarPort lock is a push and a twist for RAILBLAZA gear. Petroleum grease on that slide is a known way to ruin the plastic. If you lubricate it, use something the maker allows, and use almost none. Salt and sand in the lock are the ordinary failure. Rinse the base when you rinse the boat. Do not leave a holder inserted for a month in the sun if you can pull it. UV and a loaded lock are how the slide gets sticky. The 2.08-ounce weight is not a strength rating. Strength is the screws and the hull under them.

Do: decide the accessory list before you buy a box of bases. A StarPort without a RAILBLAZA holder is a black rectangle. Don't: expect a Scotty 241 post to seat in it. Don't: mount it where a paddle stroke hits it every third stroke. The paddle tells you where your hands already travel. Put the base outside that arc, or you will hate the base by the second mile.

How to bolt either base so it stays

Find the old holes first. If they match the Scotty 1 5/16 by 3 3/16 pattern, the 241-BK is the direct replacement for a Scotty post. If they match the rectangular four-hole pattern the StarPort HD is built to cover, model 03-4046-11 can take that spot for RAILBLAZA gear. If they match neither, you are drilling. Mark from the base, not from memory. A hole that misses by an eighth of an inch becomes an oval, and ovals leak and strip.

Use a backing plate on plastic. Stainless screws, nylock nuts or nylon-insert nuts, and a sealant compatible with the hull. Tighten until the flange sits, then stop. Nylon bases crack when they are used as the washer. Check the holder with a rod in it, on the trailer, before the ramp. Pull sideways. If the base lifts, the screws are in foam or in nothing. Move the base to a reinforced pad. A rod holder that departs during a hookset takes the rod with it.

On a kayak, think about your legs and the hatch. A base beside a thigh is a bruise. A base that blocks a hatch is a base you will remove wet, with cold fingers. On a jon boat, the gunnel cap may hide a wire. Look before you drill. Bilge pumps and navigation lights live in those same walls. A screw through a wire is a quiet failure until the pump does not run.

What actually fails on a rod-holder base

The screws fail first. They were too short, they were sheet-metal screws in plastic, or they were never locked and they walked out. The base then enlarges the holes. The fix is a bigger backing plate and the right bolts, not a second base on the same wrecked holes. The plastic fails when a rod is used as a handle to drag the boat. A holder is not a carry handle. Lift the boat by the handles the hull came with.

The ecosystem fails next. People buy the StarPort because the footprint matched a Scotty bracket, then discover the post will not lock. That is not a defective base. It is two product families. Keep the Scotty bracket if the holders are Scotty. Buy the StarPort if the next accessories are RAILBLAZA. The part-number L on the Scotty card fails people the same way. Read the stamp on the bracket, not only the title, before you drill.

Corrosion fails the fasteners you chose in mild steel because they were in the junk drawer. Stainless, or the hardware the hull already used, is the replacement. Rinse salt. A black nylon base will chalk in the sun over years. That is age, not a reason to overtighten a fresh one until it cracks on day one.

What this comparison is not

It is not a rod, a reel, or a fishfinder. Graphs need their own brackets and a transducer that can see water. It is not a life jacket. The vest is what keeps you with the boat if the drill session goes badly. It is not a track system unless you buy the track kit the StarPort bullet mentions. The base alone does not slide in a gunnel track.

It is not a reason to mount six holders on a kayak you paddle solo. Two, placed where the paddle misses them, cover trolling and a spare. A jon boat can wear more because the gunnel is longer and nobody is paddling through them. Start with one base, fish it, then add the second where the first one taught you the rod wants to sit. The 1.6-ounce and 2.08-ounce figures are the bases. The rod is the weight that matters when a fish pulls.

So which base should you buy?

Buy the Scotty 241-BK when your rod holders are Scotty posts, you can live with the 1 5/16 by 3 3/16 inch bolt pattern, and you will read the stamp so a 241L does not surprise you. Hardware is not in the box. Buy the RAILBLAZA StarPort HD, model 03-4046-11, when the accessories you will lock in are RAILBLAZA, and the rectangular base can reuse the holes you already have. It is about 6 by 4.25 by 1.25 inches and 2.08 ounces on this card. Do not expect a Scotty post to seat in the star. Match the top of the base to the holder you already own, then bolt it to something that can take a sideways pull.
